Professional Repair and Strengthening of Load-Bearing Wood Beams and Columns Service

Professional Repair and Strengthening of Load-Bearing Wood Beams and Columns
in Southern California

Saving wooden structures from failure while preserving their original appearance

What Is Professional Repair and Strengthening of Load-Bearing Wood Beams and Columns?

Wooden beams are the "silent" elements of a building that do their job for decades without complaint, but when they begin to fail, it rarely happens politely. We offer reliable engineering solutions for the restoration of wooden floors, load-bearing columns, and roof truss systems of any complexity.

How to tell if wooden structures need help?

Don't wait for a collapse! Often, wood deteriorates from the inside out long before the problem becomes visible on the outside. Look for visual and physical indicators:

Cracks and splits running along or across the beam.
Sagging floors or ceilings that feel suspiciously "bouncy".
Noticeable rot, discoloration of the wood, or crumbling.
Doors and windows that suddenly stop closing properly due to frame distortion.
Hidden threats: Even if a beam looks intact, special tools can reveal high moisture, hidden insect voids, or internal heart rot. If a beam sounds hollow when tapped with a hammer, it is the first sign of internal voids.

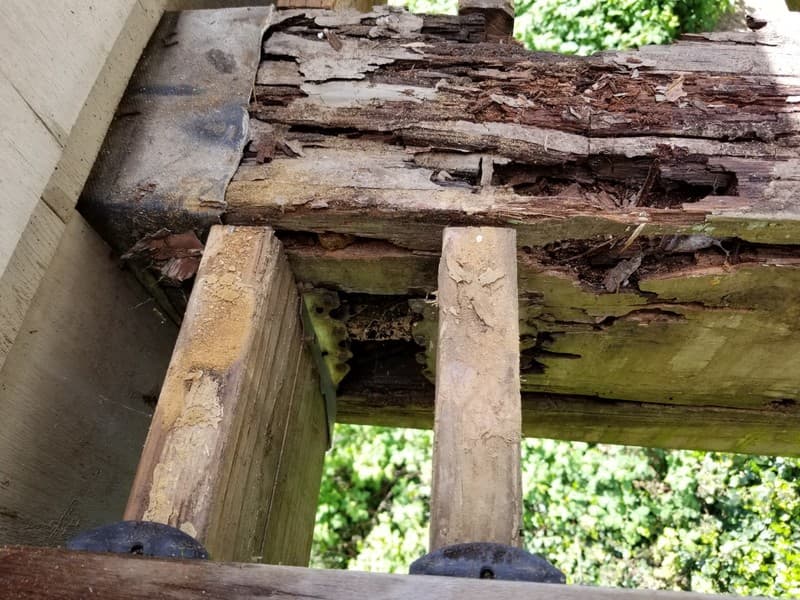

Severe Dry Rot

Dry rot fungus consumes the cellulose in wood, leaving it brittle, crumbly, and structurally compromised. In load-bearing beams, this can lead to catastrophic failure if left untreated. Notice the deep longitudinal cracks and crumbling edges.

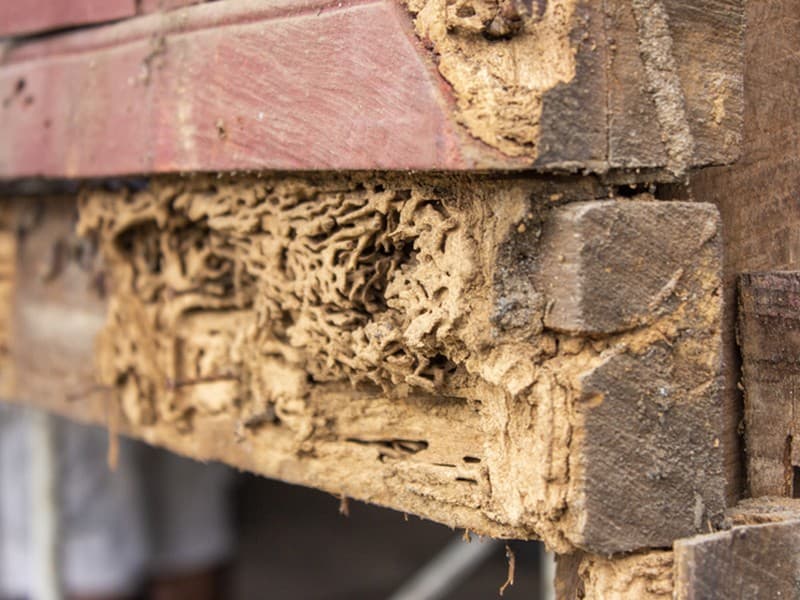

Extensive Termite Damage

Termites eat wood from the inside out, often leaving a thin, intact outer shell that masks the extensive damage within. The hollowed-out honeycomb texture is a classic sign of advanced termite infestation, severely weakening the column's load-bearing capacity.

The main enemies of wood: Why do columns and beams fail?

Repairing a wood beam without understanding the root cause is a waste of money. Without eliminating the underlying conditions, the damage will inevitably return.

Moisture intrusion and fungal decay

Water is wood's greatest enemy. Rot (such as dry rot and wet rot) occurs due to roof leaks, poor ventilation, or condensation. With just a 10% mass loss due to incipient decay, the timber's structural load resistance can drop by 80%.

Wood-destroying insects

Termites, powder-post beetles, and carpenter ants can silently consume wood for years. They tunnel along the grain, often leaving only a thin outer shell of intact wood while hollowing out critical structural sections.

Overloading and mechanical wear

Buildings change over time: new HVAC systems, heavier roofing materials, or interior remodels place loads on beams that they were never designed to carry. This leads to bending, microfractures, and the rupture of wood fibers across the grain.

Previous construction defects

Improper notching, running pipes through load-bearing beams, and undersized cross-sections compromise the structure from day one.

Our technologies: From traditional restoration to innovation

We don't just replace wood. We offer modern solutions that strengthen beams without detracting from the authenticity of the old elements. We utilize advanced structural repair methods approved by experts:

Epoxy consolidation and resin injection

For beams with early to moderate decay, we use high-strength epoxy resins that consolidate weakened wood fibers and restore the monolithic structure without extensive demolition.

Concealed reinforcement with FRP rods

A technique for repairing cracks and fractures using composite (carbon or fiberglass) rods sealed inside the timber with resin. This ensures the reliable transfer of tensile forces and makes the repair completely invisible.

Installation of steel plates (Flitch Beams)

To radically increase load capacity, concealed steel plates or channels are inserted into the beam to create a composite of steel and timber. This allows the original beam to remain in place while significantly boosting its strength.

Resin concrete prosthetics and Scarf joints

When the end of a beam is completely decayed, we carefully remove the damaged section and recreate it using a colored resin mortar casting (resin concrete), or we splice in a new timber prosthesis using V-shaped scarf joints and anchors.

Strengthening by sub-bandage (Tensioning)

To balance thrust forces in arches and increase bending strength, we use a system of active metal tie rods or tensioned wire ropes.

What's Included

In-depth diagnosis using resistographs and moisture meters

Epoxy injection and consolidation for weakened fibers

Hidden reinforcement with carbon fiber and fiberglass

Installation of steel plates (Flitch Beams)

Polymer concrete prosthetics and the "Scarf" method

Sub-bandage / Tensioning for arches and rafters

Our Process

Deep Diagnostics

We use resistographs and moisture meters to precisely measure wood density from the inside.

Temporary Shoring

We install temporary supports to safely intercept the load and protect the building.

Root Cause Elimination

We help find and fix the source of the problem, such as roof leaks or wall dampness.

Advanced Repair

We apply epoxy injections, carbon fiber rods, or steel plates depending on the severity.

Careful Restoration

We preserve as much original historical wood as possible, using honest and reversible methods.

Frequently Asked Questions

Why is it important to address the root cause before repairing a beam?

Without fixing the underlying issue, such as a roof leak or poor ventilation, the newly repaired beam will simply rot or fail again. Identifying the root cause ensures a permanent solution.

Can you repair a load-bearing beam without replacing it entirely?

Yes! In many cases, we can restore the beam's load-bearing capacity using epoxy injections, hidden carbon fiber reinforcements, or steel flitch plates. This is often less invasive and preserves the historic structure.
