A complete guide to California Building Code (CBC 1015) balcony railing standards: 42-inch height, 4-inch sphere rule, 200 lb lateral force, powder coating benefits, and 3 modern multi-family styles (cable, glass, and metal profile).
Table of Contents
- 1. California Building Code (CBC Section 1015) Railing Standards
- 2. Three Modern Architectural Railing Styles for Multi-Family Buildings
- 3. Materials Guide: Aluminum, Stainless Steel, Galvanized Metal & Hardwoods
- 4. Why Architectural Powder Coating is Superior to Traditional Wet Paint
- 5. California Regulatory & Professional Scope Disclosure
- Upgrade Your Balcony Guardrails with PiersPro
When property owners and HOA boards evaluate balcony safety under California's SB-721 (Health & Safety Code §17973) and SB-326 (Civil Code §5551), guardrail integrity is among the most heavily scrutinized life-safety elements.
A balcony guardrail is not just an architectural accent—it is the literal life-safety barrier standing between residents and a fatal multi-story fall. In older multi-family apartments across Los Angeles and Orange County, guardrails frequently fail statutory inspections due to corroded lag fasteners, insufficient height, or excessive baluster spacing.
At PiersPro (holding California General Contractor License CSLB #1110475 — Class B General Building), we design, fabricate, and install code-compliant, structurally anchored railing systems. This guide details the California Building Code (CBC) mandates, proper through-bolt anchoring, the advantages of architectural powder coating, and three popular modern design styles.
---
1. California Building Code (CBC Section 1015) Railing Standards
To pass municipal inspection in California, all exterior elevated guardrails on residential buildings must satisfy four mandatory engineering standards:
1. The 42-Inch Minimum Height Requirement
Under CBC Section 1015.3, guardrails on multi-family residential buildings where the walking surface is located more than 30 inches above the grade or floor below must be at least 42 inches tall (measured vertically from the leading edge of the deck surface to the top of the handrail). Older 36-inch railings commonly found on 1960s–1980s apartments must be upgraded during structural reconstructions.
2. The 4-Inch Sphere Rule (Child Fall Prevention)
Under CBC Section 1015.4, intermediate openings in guardrails—whether between vertical balusters, horizontal tension cables, or glass panels—must not allow the passage of a 4-inch diameter sphere (roughly the size of a small child’s head). Any opening wider than 4 inches represents an immediate hazardous condition requiring immediate remediation.
3. Structural Load Resistance (200 lbs Lateral Force)
Under CBC Chapter 16 (Structural Design):
* The top handrail and corner support posts must withstand a single concentrated load of at least 200 pounds applied horizontally or vertically outward at any point along the rail.
* The intermediate baluster infill must withstand a horizontal load of at least 50 pounds per square foot over its tributary area.
4. Through-Bolt Structural Anchoring (No Surface Lag Screws)
Historically, contractors mounted guardrails by driving lag screws downward directly through the deck waterproofing into the plywood subfloor. Over time, vibration and foot traffic tear the waterproof seal, allowing rainwater to funnel directly into the structural timber rim joist.
The PiersPro Standard: We anchor guardrail posts with hot-dipped galvanized or 316 stainless steel through-bolts with heavy backing plates driven directly through solid internal joist blocking. Every post base is isolated with an elastomeric waterproof flashing boot prior to applying deck coating layers.
---
2. Three Modern Architectural Railing Styles for Multi-Family Buildings
Modern multi-family buildings and HOAs in Southern California require railings that blend uncompromising structural strength with high-end curb appeal.
Style 1: Modern Horizontal Cable Railing (Модерн с тросами)

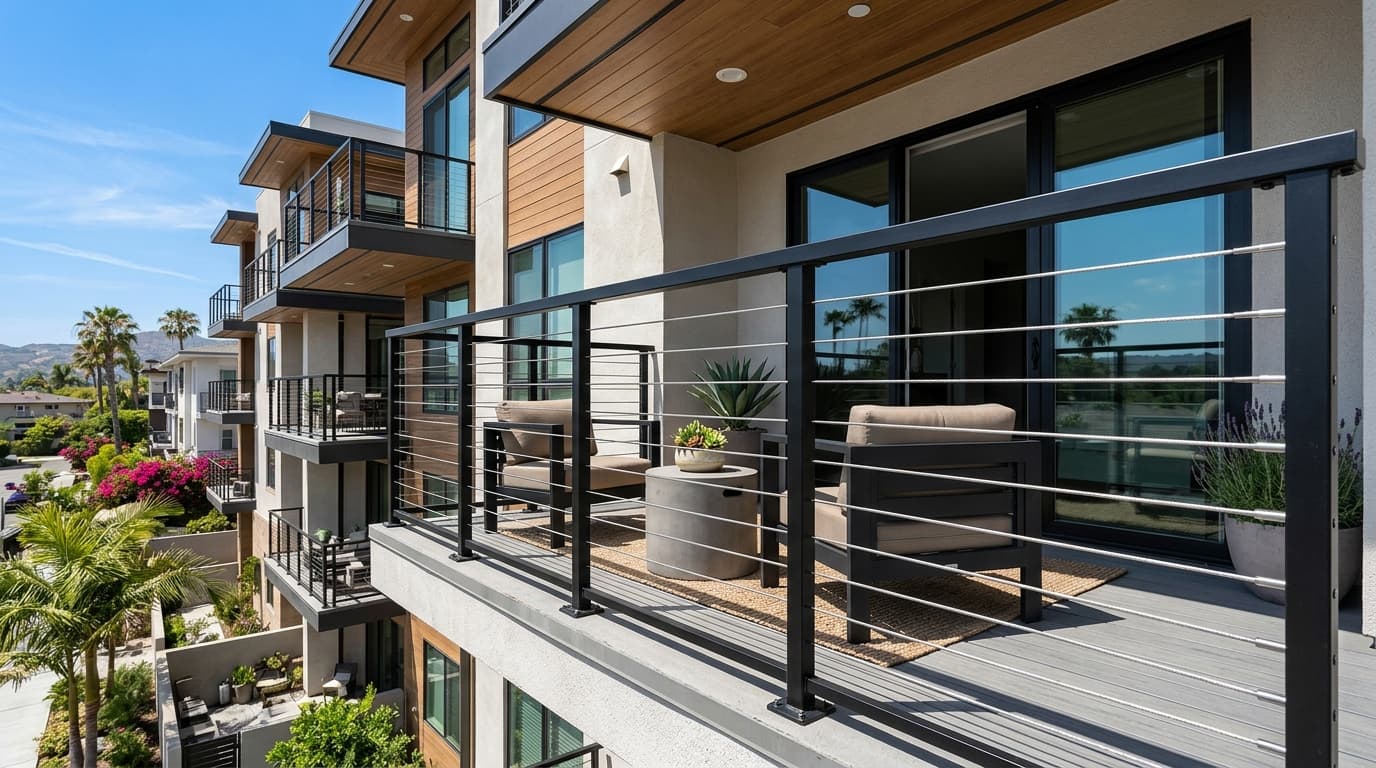

*Photo 1: Modern horizontal stainless steel cable railing with sleek black powder-coated posts on a multi-family apartment building.*
* Architecture: Ultra-sleek minimalist lines maximizing panoramic ocean, canyon, or city skyline views.
* Infill: 1/8" or 3/16" marine-grade 316 stainless steel cables spaced 3 inches on-center to strictly prevent cable deflection beyond 4 inches under load.
* Hardware: Concealed mechanical turnbuckles tensioned to a minimum of 220–250 lbs of pull force.
Style 2: Tempered Glass Panels with Hardwood Top Cap (Стеклянные панели с деревянными перилами)

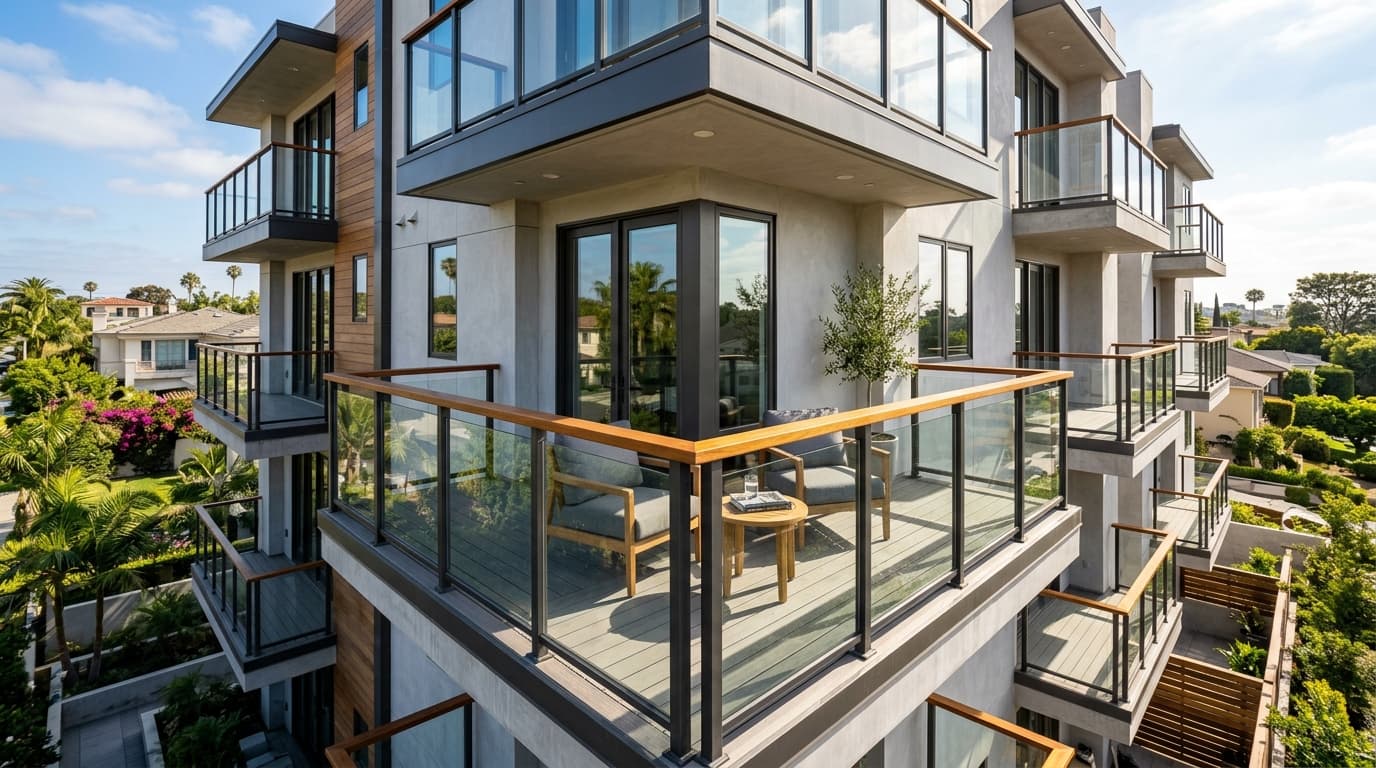

*Photo 2: Minimalist tempered glass guardrail panels accented with a rich natural hardwood top handrail.*
* Architecture: Combines the transparent luxury of glass with the organic warmth of architectural timber.
* Glass Infill: 1/2-inch structural laminated or tempered safety glass engineered to deflect coastal winds without obstructing sunlight.
* Hardwood Handrail: Densely grained, rot-resistant hardwoods like California Redwood, Western Red Cedar, or Brazilian Ipe, pre-treated with penetrating UV oil finishes.
Style 3: Standard Architectural Metal Profile Railing (Металлический профиль)
*Photo 3: Classic architectural metal profile guardrail with vertical square balusters in matte black powder-coated finish.*
* Architecture: The timeless standard for Southern California apartments and HOA communities.
* Infill: Vertical 3/4" or 1" square hollow structural section (HSS) balusters welded to top and bottom structural rails.
* HOA Compatibility: Offers 100% architectural consistency and virtually zero ongoing maintenance.
---
3. Materials Guide: Aluminum, Stainless Steel, Galvanized Metal & Hardwoods
Selecting the proper alloy is critical for surviving Southern California’s coastal marine atmosphere:
* Architectural Aluminum (6063-T6): Naturally impervious to rust, lightweight (minimizing dead weight on cantilever console beams), and highly cost-effective. Highly recommended for coastal Los Angeles and Orange County.
* Marine-Grade Stainless Steel (AISI 316): Contains molybdenum for superior resistance against pitting from airborne salt spray. The gold standard for cable infill and structural through-bolts.
* Hot-Dipped Galvanized & Coated Steel: Combines the supreme structural rigidity of welded carbon steel with a sacrificial zinc bath, followed by an industrial powder-coat barrier.
* Rot-Resistant Hardwoods: Premium Redwood, Cedar, and Ipe provide an upscale tactile experience for pedestrian handrails while naturally resisting wood-decay fungi.
---
4. Why Architectural Powder Coating is Superior to Traditional Wet Paint
For exterior metal guardrails, traditional brush- or spray-applied wet paint begins to fail within 24 to 36 months under Southern California’s intense ultraviolet radiation.
| Performance Metric | Thermally Cured Powder Coating | Traditional Wet Paint |
|---|---|---|
| Application Process | Electrostatically applied dry polymer powder, baked at 400°F | Air-dried liquid solvent paint |
| UV & Fade Resistance | Exceptional (no chalking or fading for 10+ years) | Degrades and chalks within 2–3 years |
| Impact & Scratch Defense | High-density plasticized shell resists chipping | Easily chipped by shoes, tools, or patio furniture |
| Salt-Air Corrosion (ASTM B117) | Tested to 3,000+ hours without rust bloom | Blisters and flakes rapidly in coastal zones |
| Environmental Safety | Zero VOCs, no toxic solvents or air pollutants | Emits volatile organic compounds (VOCs) |
---
5. California Regulatory & Professional Scope Disclosure
Official Statutory Notice:
SB-721 inspections are performed under California Health & Safety Code §17973 by a licensed general building contractor with more than five years of relevant experience. SB-326 inspections under California Civil Code §5551 must be performed by a licensed structural engineer, civil engineer, or architect. We do not perform SB-326 inspections directly; we execute the repairs identified in the inspecting professional's report and manage the project on the association's behalf. When you work with PiersPro, we coordinate and provide a licensed engineer for your project, so you do not need to search for one yourself. We do not provide structural engineering services directly. Evaluations of structural capacity, load analysis, and stamped design documents are prepared by a licensed engineer.
---
