Compare California's top concrete slab lifting and foundation repair methods: steel helical piers, traditional mudjacking, and modern polyurethane slabjacking.
Table of Contents
- 1. Steel Helical Piers (The Structural Solution)
- 2. Traditional Mudjacking (The Heavy Fill)
- 3. Polyurethane Slabjacking (The Modern Lift)
- Comparison: Helical Piers vs. Mudjacking vs. Polyjacking
- E-E-A-T: Selecting the Right Contractor in California
- Frequently Asked Questions (FAQ)
- Secure Your Foundation with the Right Method
When a home’s foundation settles, or a concrete slab (like a patio, driveway, or garage floor) sinks, homeowners are faced with several repair options. In Southern California, the most common methods for lifting concrete and stabilizing foundations are steel helical piers, traditional mudjacking, and modern polyurethane slabjacking.
However, because these methods operate on different mechanical principles, choosing the wrong one can lead to project failure and wasted money.
At PiersPro, operating under California General Contractor License #1110475, we specialize in deep foundation engineering and slab stabilization. We follow a strict "No-Upsell" policy: we only recommend the repair method that is structurally appropriate for your property’s soil conditions and load requirements. In this guide, we will compare helical piers vs mudjacking and polyurethane slabjacking to help you make an informed decision.
1. Steel Helical Piers (The Structural Solution)
Helical piers are structural steel shafts with spiral (helical) plates welded to them. They are screwed deep into the ground using hydraulic machinery until they reach load-bearing soil or bedrock. A steel bracket is then attached to the pier and secured under the home's concrete footing to lift and support the foundation.
* Best for: Lifting settled home foundations, load-bearing exterior walls, and historic masonry structures built on unstable soil.
* Longevity: Permanent structural support (typically warrantied for 25+ years).
* Cost: High initial cost, but represents the only permanent solution for structural settlement.
2. Traditional Mudjacking (The Heavy Fill)
Mudjacking is a traditional method for lifting concrete slabs. It involves drilling 2-inch holes through a sunken concrete slab and pumping a thick slurry mixture (composed of soil, sand, water, and Portland cement) under the slab. The hydraulic pressure of the pumping slurry lifts the concrete back to its original position.
* Best for: Lifting heavy concrete slabs, such as driveways, sidewalks, and pool decks.
* Limitations: The slurry mixture is extremely heavy (adding about 100-150 lbs per cubic foot of weight on the underlying soil). If the soil is already weak, the heavy slurry can cause the soil to settle further, resulting in slab failure within a few years.
* Cost: Moderate.
3. Polyurethane Slabjacking (The Modern Lift)

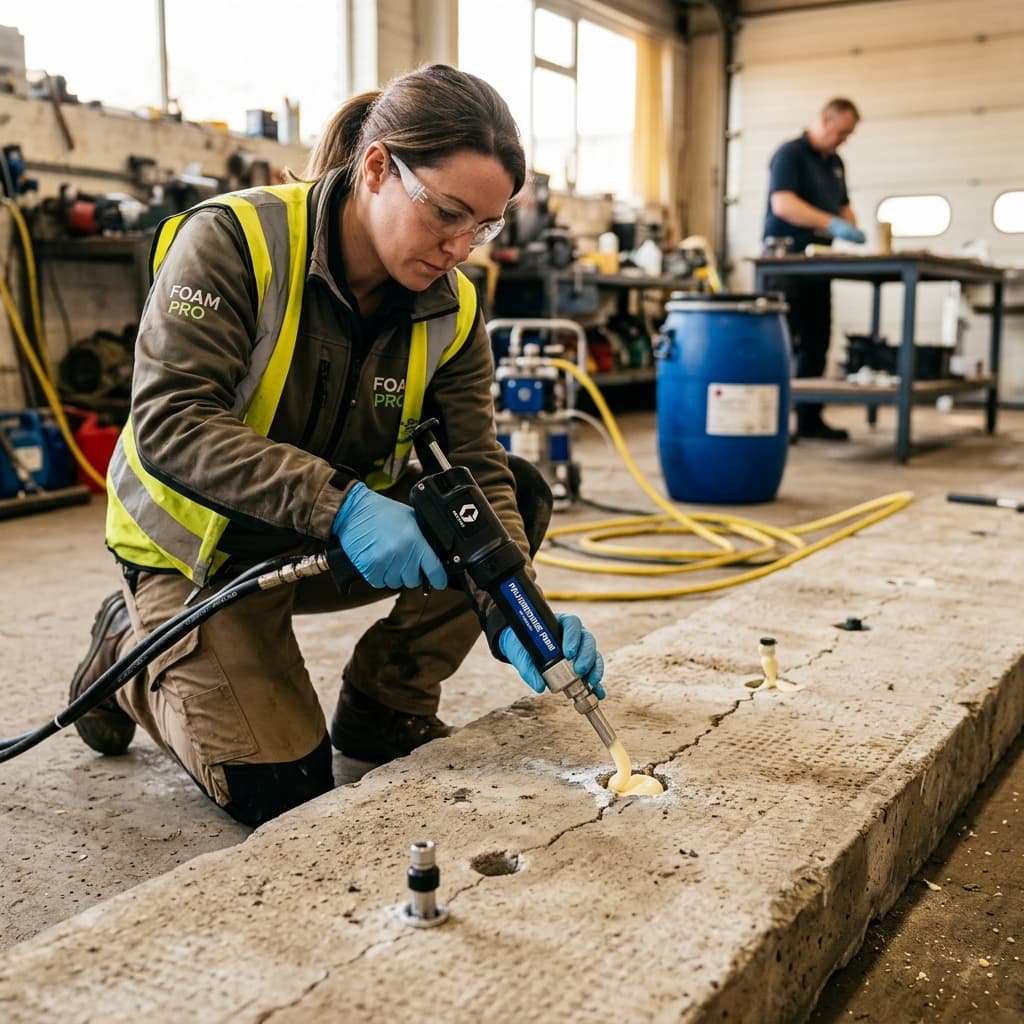

Polyurethane slabjacking (also known as polyjacking) is a modern alternative to traditional mudjacking. Instead of a heavy sand-cement slurry, we drill tiny, 5/8-inch holes into the concrete and inject a high-density, two-part polyurethane foam. The foam expands under the slab, filling voids and lifting the concrete.
* Best for: Light-to-medium concrete slabs, garage floors, interior concrete slabs, and areas with limited access.
* Advantages: The foam is extremely light (weighing only 3-5 lbs per cubic foot), waterproof, and cures in under 15 minutes, allowing immediate use of the slab.
* Cost: Moderate to high.
---
Mid-Content Call to Action
Is your concrete slab sinking, or is your home's foundation settling?
Get an honest engineering evaluation. PiersPro offers a detailed $99 Instrumental Diagnostic where we map floor elevations, inspect soil conditions, and determine the exact lift method needed. The $99 is credited to your contract if you proceed with repairs.
Schedule a Slab Evaluation or call (213) 583-6669 to speak with our structural team.
---
Comparison: Helical Piers vs. Mudjacking vs. Polyjacking
| Feature / Metric | Helical Piers | Traditional Mudjacking | Polyurethane Slabjacking |
|---|---|---|---|
| Mechanical Action | Deep steel piles screwed into load-bearing strata | Hydraulic cement slurry pumped under slab | Expanding structural foam injected under slab |
| Material Weight | Negligible (steel shafts) | Extremely heavy (120+ lbs/cu.ft.) | Very light (3-5 lbs/cu.ft.) |
| Drill Hole Size | N/A (excavated bracket) | Large (2-inch diameter holes) | Tiny (5/8-inch diameter holes) |
| Primary Use Case | Structural foundation lifting and stabilization | Non-structural outdoor slab lifting | Interior slab lifting and void filling |
| Soil Load Stress | Zero (transfers loads to deep soils) | High (can cause secondary settling) | Negligible (does not overload soils) |
| Lifespan | 25+ Years / Permanent | 3 to 7 Years (dependent on soil) | 10+ Years (highly stable) |
E-E-A-T: Selecting the Right Contractor in California
Slab lifting and foundation repair require specialized engineering knowledge. Using traditional mudjacking on a house experiencing structural footing settlement is a waste of money, as the slurry cannot support the weight of a house.
At PiersPro, we take pride in our honest, engineering-first approach. We manage all required city building permits (LADBS/OC) and verify all calculations. You can check our license #1110475 directly at cslb.ca.gov and review our completed project photos in our Projects section.
Frequently Asked Questions (FAQ)
Q1: Is mudjacking cheaper than helical piers?
A1: Yes. Mudjacking is significantly cheaper than helical pier installation because it is used for non-structural concrete slabs rather than structural home foundations. However, mudjacking cannot be used to stabilize a settling home foundation.
Q2: What is the main drawback of traditional mudjacking?
A2: The main drawback is the weight of the sand-cement slurry. The added weight compresses the underlying soil, which often leads to the slab sinking again. Polyurethane slabjacking avoids this issue due to its lightweight nature.
Q3: How long does polyurethane slabjacking take to cure?
A3: High-density polyurethane foam cures and achieves 90% of its load-bearing capacity in 15 to 30 minutes. Slabs can be walked or driven on almost immediately after injection.
Q4: Can helical piers be used to lift concrete slab floors?
A4: Yes. For homes built on slab foundations that are settling, we install helical piers along the perimeter footings and use slab brackets to support the interior concrete floor slabs.
Secure Your Foundation with the Right Method
Get an objective, data-driven evaluation of your foundation and concrete slabs. Trust PiersPro for honest diagnostics and professional craftsmanship.
Contact PiersPro today. Call us at (213) 583-6669 or book your diagnostic online to schedule an inspection.
