A real-world case study from the PiersPro engineering team: how a simple lack of balcony waterproofing led to the complete rot of a main load-bearing console beam, forcing a total demolition. Learn how to prevent it.
Table of Contents
Balcony and deck maintenance is frequently overlooked by homeowners in Southern California. It is a common misconception that our warm, dry climate protects exterior wood from decay. In reality, sporadic heavy rains, marine layer humidity, and poor drainage create the perfect breeding ground for hidden dry rot. If you do not seal off water entry points early on, a simple waterproofing repair can quickly escalate into a full structural demolition costing tens of thousands of dollars.
Recently, the PiersPro engineering team inspected a balcony at a residential property in Southern California. The findings from this inspection are a classic cautionary tale of what happens when routine maintenance is deferred.
The Inspection Findings: A Timeline of Structural Decay
At first glance from the top, the balcony only seemed to have a few loose deck boards. However, once our team performed a thorough instrumental diagnostic using moisture meters and structural probes, we uncovered severe structural damage to the framing:
* Complete Outrigger/Beam Rot: The balcony's load-bearing capacity relies on cantilevered wood beams extending from the house. Because there was no proper metal flashing at the stucco transition, water has been seeping behind the wall envelope and ponding under the decking for years. The wood has completely rotted through.
* Loss of Structural Integrity: The balcony is currently unsafe for use. The primary console beam is entirely hollowed out at the critical shear zone. A simple screwdriver test shows the wood has lost all fiber density and crumbles like a wet sponge under slight pressure.
* Ledger Board and Wall Damage: The decay has migrated beyond the balcony framing. The dry rot is now spreading into the building's rim joist and wall framing inside the stucco cavity, threatening the structural integrity of the home itself.
Here are the diagnostic photos from the on-site inspection:

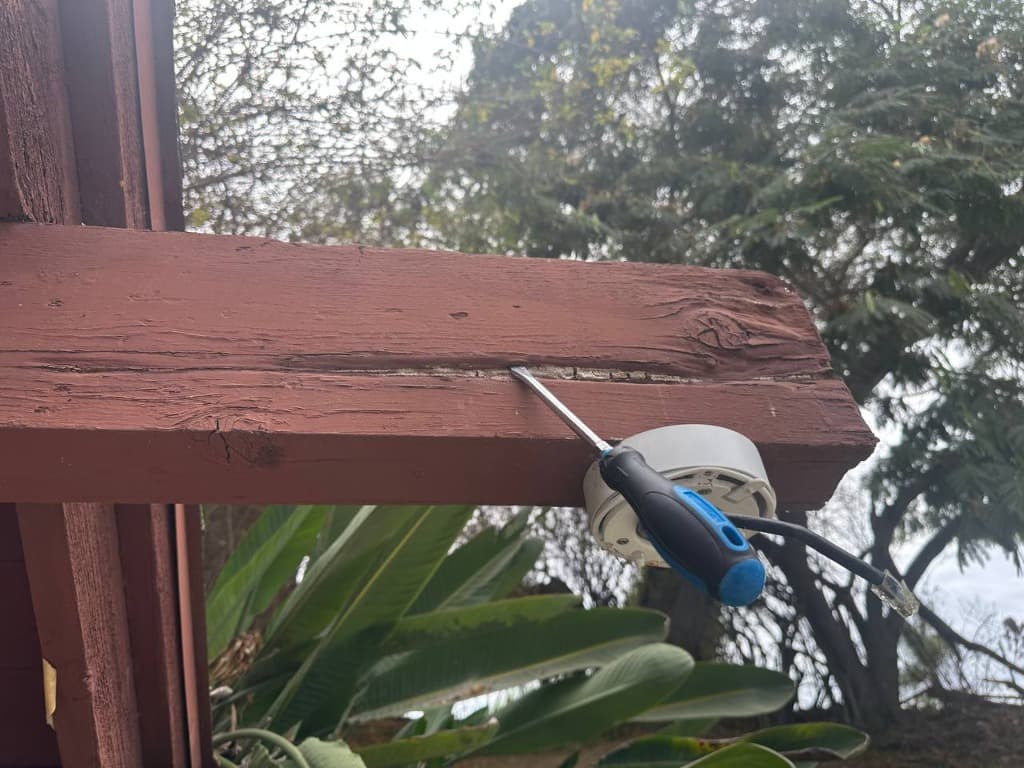

*Photo 1: A screwdriver easily penetrates deep into the structural wood beam of the balcony. The wood has been completely destroyed by dry rot.*

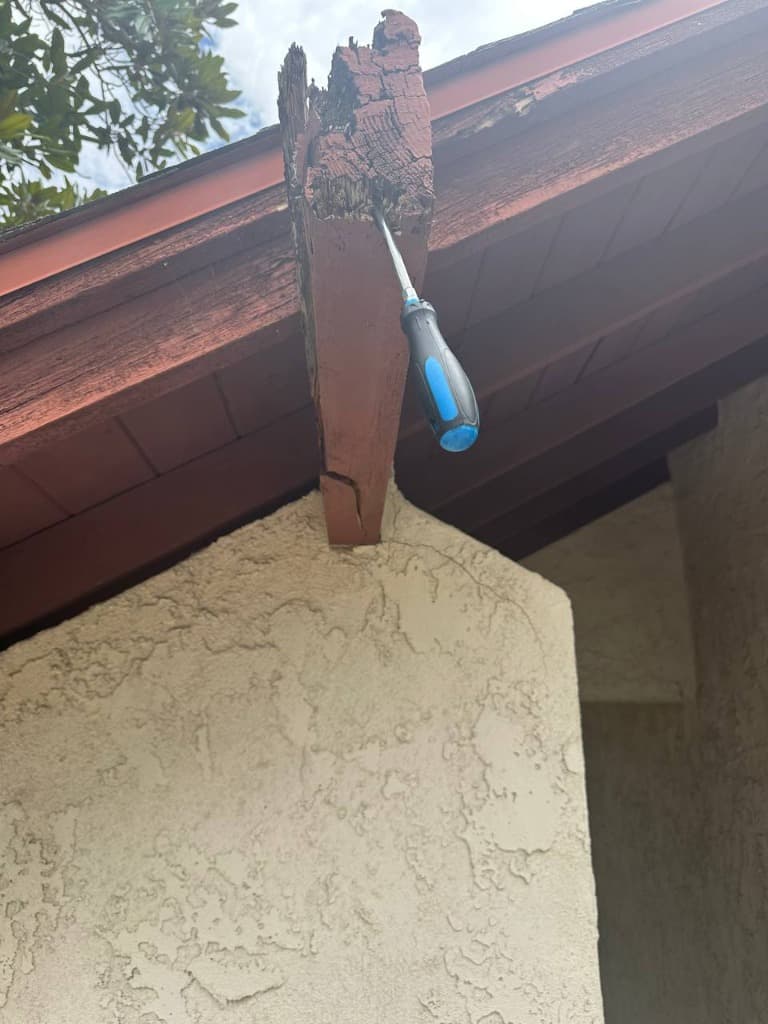

*Photo 2: The cantilevered outrigger beam tail supporting the balcony corner is completely rotted out. The beam has lost all load-bearing capacity.*

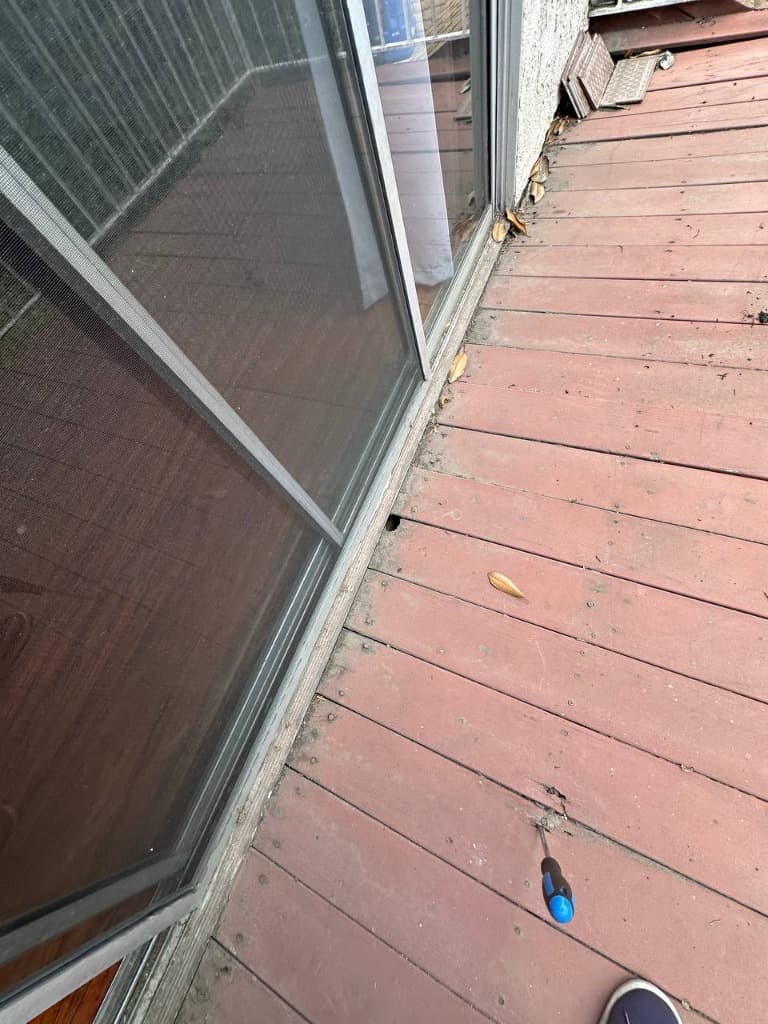

*Photo 3: Due to a lack of slope and coating maintenance, the deck boards near the sliding glass door have rotted through and are starting to collapse.*

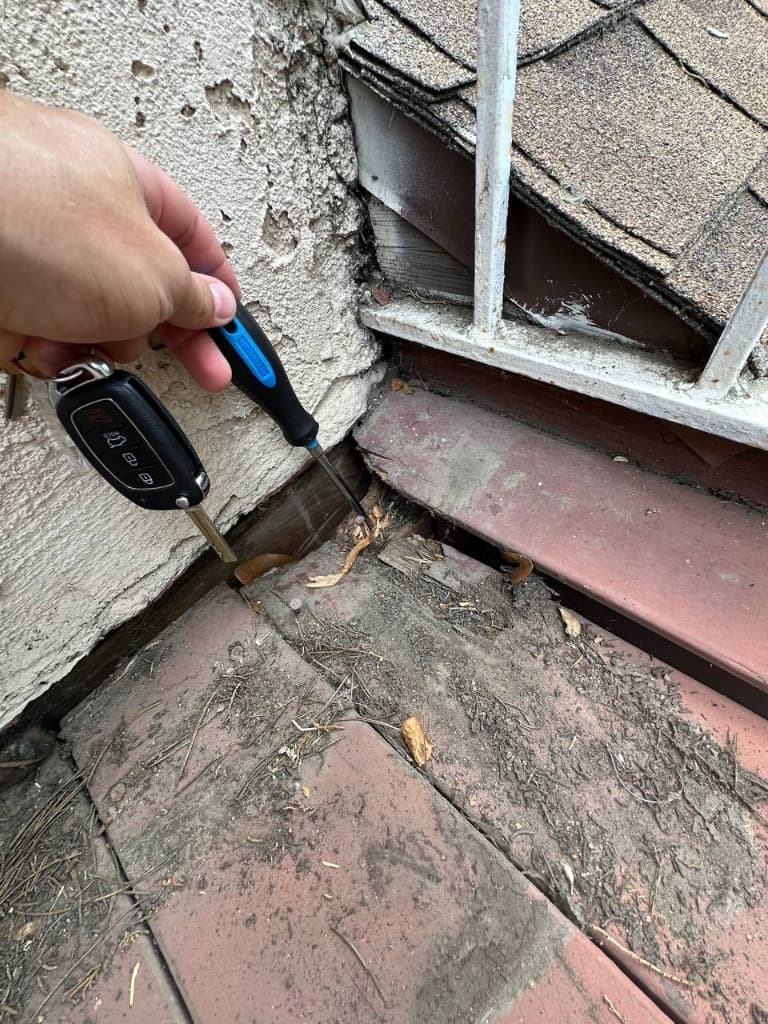

*Photo 4: The balcony-to-stucco wall junction. Without proper flashing and waterproofing, water seeped behind the stucco, destroying the ledger board.*
The Only Solution: Complete Demolition and Rebuild
If the homeowner had spent $2,500 to $4,000 on timely balcony waterproofing and flashing maintenance years ago, water would have never reached the hidden framing.
Because the main supporting outrigger has suffered irreversible structural failure, a localized patch is no longer an option. The required remediation now involves:
- Installing temporary structural shoring to prevent sudden collapse.
- Complete demolition and disposal of the existing balcony structure.
- Cutting back the exterior stucco to expose the framing, replacing the rotted ledger board, and rebuilding the wall framing.
- Installing new structural cantilever beams using pressure-treated lumber.
- Rebuilding the deck platform, installing new flashing, and applying a professional multi-layer waterproofing system.
Under current California pricing, this full structural reconstruction with building permits (LADBS/OC) will cost between $15,000 and $25,000+, depending on the size and height of the balcony.
How to Protect Your Balcony: Prevention Tips from PiersPro
To avoid facing a costly structural rebuild, follow these guidelines:
* Schedule Routine Inspections: While multi-family properties are mandated to perform inspections under California's SB-721 and SB-326 laws, single-family homeowners should also schedule a professional balcony inspection every 3 to 5 years.
* Maintain the Waterproof Barrier: Premium polyurethane and elastomeric deck coatings typically last 5 to 10 years. Recoating your deck on schedule blocks moisture from reaching the wood substrate.
* Clear Drains and Check Flashing: Keep drains clear of leaves and debris, and check that the metal flashing along the walls remains tightly sealed.
