Southern California soils are notorious for their clay content. In areas like Pasadena, Glendale, Arcadia, and the San Gabriel Valley, residential foundations sit on highly expansive clay soils. For homeowners, understanding this geological characteristic is key to protecting their properties.
Expansive clay acts like a sponge: it swells when wet and shrinks when dry. This cycle puts continuous movement stress on concrete footings.
At PiersPro (CA GC License #1110475), we specialize in foundation stabilization under California soil profiles. This guide explains how clay soil damages foundations and how structural engineers mitigate this movement.
The Science of Expansive Clay
Clay particles are microscopic and have a highly active surface area that attracts water molecules.
- The Swell (Winter): When winter rains saturate the soil, the clay expands, pushing upward against the concrete footing. This upward movement is called "heave."
- The Shrink (Summer): In dry summer months, the clay loses moisture and shrinks. The soil pulls away from the concrete footing, leaving structural voids. The heavy concrete footing then settles down into these voids.
Because soil moisture levels are rarely uniform around a house, this movement is uneven. This "differential settlement" bends the concrete foundation, causing structural cracking and drywall damage.
How to Protect Your Foundation from Clay Soil
To stabilize a home built on expansive clay, engineers focus on two main strategies:
- Drainage Control: Installing gutters, French drains, and correcting grading to direct rainwater away from the foundation footings.
- Deep Underpinning: Installing steel helical piers that screw deep past the active clay layer down to stable, non-expansive soil strata or bedrock.
Is your home settling due to clay soil movement?
PiersPro provides expert crawl space and footing evaluations in LA and Orange Counties. Schedule our on-site inspection from $99 (credited to your contract) to verify your foundation elevations.
Schedule a Soil Diagnostic or call (213) 583-6669 to speak with our engineering advisors.
Seasonal Movement or Real Settlement
| What you observe | Points to |
|---|---|
| Cracks open in late summer and close after winter rain | Seasonal clay movement |
| Doors stick in one season and free up in another | Seasonal clay movement |
| Crack keeps widening year after year | Progressive settlement |
| One corner steadily lower on each measurement | Progressive settlement |
| Damage concentrated near a planter, tree or downspout | Local moisture difference |
What Homeowners Can Control
Clay moves because its moisture changes. The aim is to keep moisture as even as possible around the whole house:
- Roof water: gutters and downspouts discharging well away from the footing.
- Grading: soil sloped away from the house, not toward it.
- Irrigation: consistent watering around the perimeter; no flooding on one side while another dries out.
- Trees: large trees close to the foundation draw moisture from the clay; manage watering near them.
- Leaks: fix plumbing leaks promptly, especially under slabs.
When Drainage Is Not Enough
If measurements show a section of footing continuing to drop after water has been corrected, that section is underpinned so its load rests on soil below the zone that moves with the seasons.
Frequently Asked Questions (FAQ)
Q1: What is the Whittier Fault's connection to clay soils?
A1: Seismic tremors along faults like the Whittier Fault compress and disturb soils, which can accelerate the settlement of foundations already weakened by expansive clay cycles.
Q2: How can I tell if my home is built on clay soil?

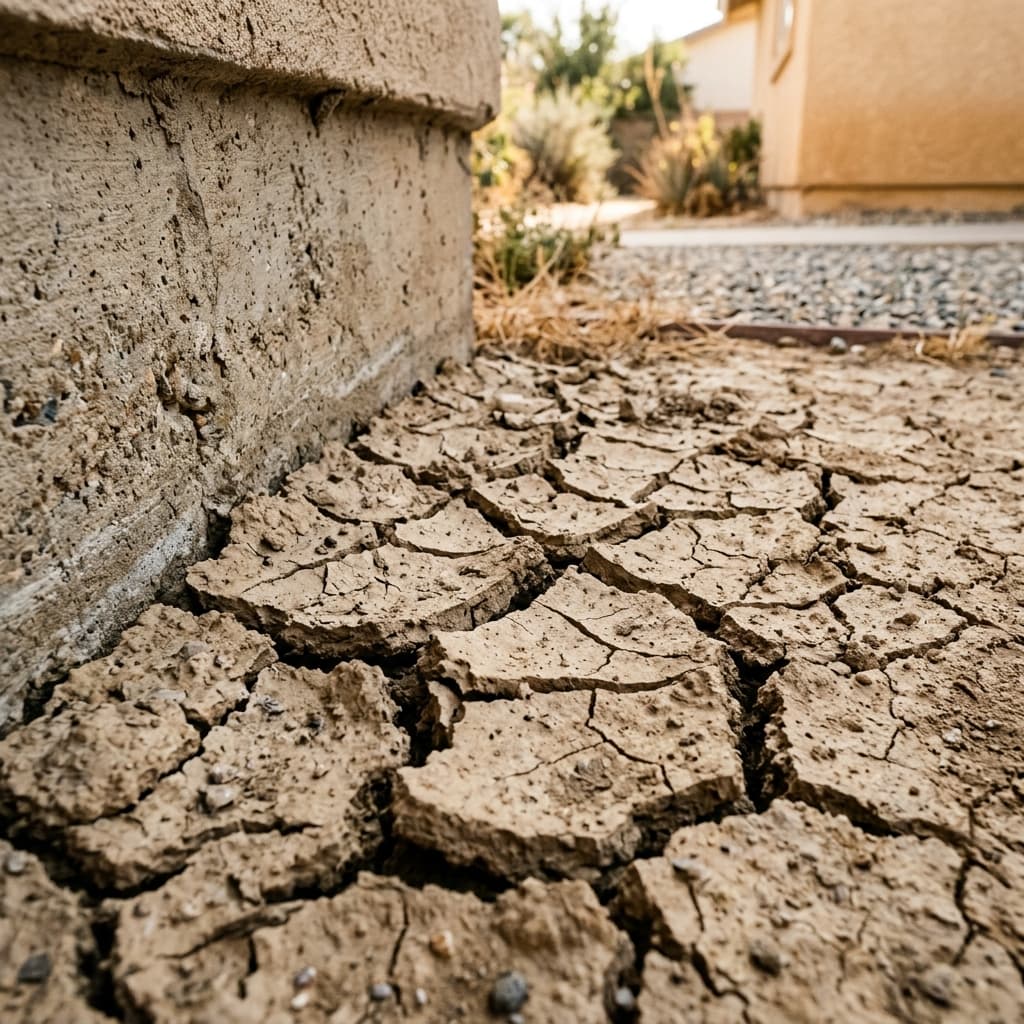

A2: In dry months, clay soil develops deep, open cracks on the surface. During rains, it becomes extremely sticky and muddy, drainage is poor, and water pools for days.
Q3: Do all cracks on clay soil mean the foundation needs piers?
A3: No. Much clay-related cracking is seasonal and is managed by controlling moisture. Piers are for sections that measurements show are settling progressively.
Q4: Should I water around my foundation?
A4: The goal is even moisture, not more water. Keep irrigation consistent around the perimeter and avoid extremes of wet and dry on different sides.
